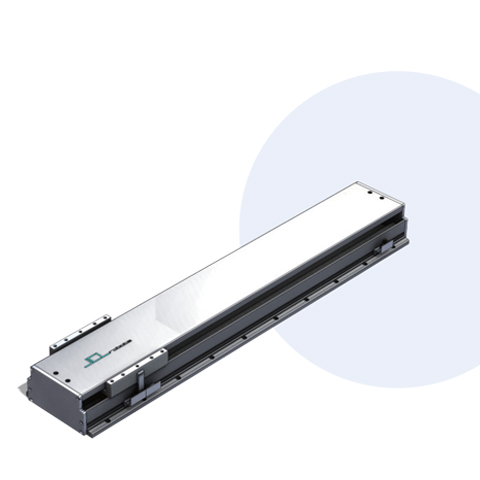

LINEAR JES-L-200S-1-xxxN-JC
| Model | JES-L-200S-1-xxxN-JC |
|---|---|
| Drive Mechanism | LINEAR MOTOR |
| LM Guide | No.25 2Way 6Block |
| Max Stroke | 500~5000mm |
| Repeatability | ±0.001mm |
-
2D 다운로드
-
3D 다운로드
본문
Detail view
※ 위 하중은 Overhang에 따라 변경될 수 있음
| Motor | Mortor Makler | Model | Continuous Force (N) | Max Force (N) |
| YASKAWA | SGLFW-50A200 | 280 | 600 | |
| MITSUBISHI | P3A-36P-CSS0 | 360 | 900 | |
| PAKER | R7-2E | 150 | 458 |
