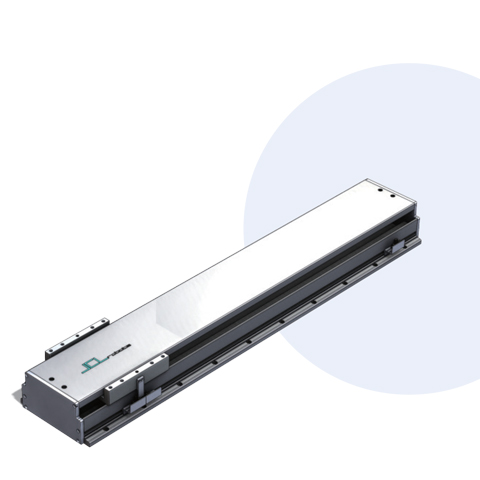

LINEAR JES-L-165S-1-xxxN-JA
| Model | JES-L-165S-1-xxxN-JA |
|---|---|
| Drive Mechanism | LINEAR MOTOR |
| LM Guide | No.20 2Way 4Block |
| Max Stroke | 500~5000mm |
| Repeatability | ±0.001mm |
-
2D 다운로드
-
3D 다운로드
본문
Detail view
※ 위 하중은 Overhang에 따라 변경될 수 있음
| Motor | Mortor Makler | Model | Continuous Force (N) | Max Force (N) |
| YASKAWA | SGLFW-35A120 | 80 | 220 | |
| MITSUBISHI | P3A-12P-CSS0 | 120 | 300 | |
| PAKER | R5-1E | 55 | 175 |
