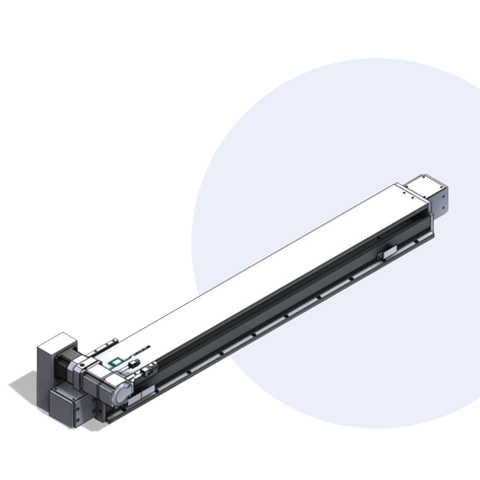

BELT JES-B-165PL/R
| Model | JES-B-165PL/R |
|---|---|
| Motor | Ac Servo 400W / 750W 3,000rpm |
| Drive Mechanism | Timming Belt (5GT,GATES) P.C.D 38.21 |
| LM Guide | No.20 2Way 4Block |
| Repeatability | ±0.08mm |
-
2D 다운로드
-
3D 다운로드
본문
Detail view
Driving Specifications
| Reducer Rate | 7 | |
| Max Speed | 1000mm/s | |
| Payload(kg) | 수평 | 80 |
※ 위 하중은 Overhang에 따라 변경될 수 있음
Stroke by Max Speed & Weight
| Stroke | 100 | 200 | 300 | 400 | 500 | 1,000 | 1,500 | 2,000 | 2,500 | 3,000 |
| Max Speed | 1000mm/s | |||||||||
| Weight | 19.9 | 21.4 | 22.8 | 24.3 | 25.8 | 33.1 |
40.4 | 47.8 | 55.1 | 62.4 |
