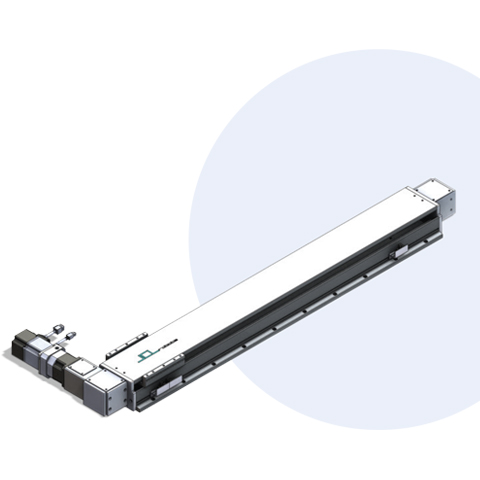

BELT JES-B-200S
| Model | JES-B-200S |
|---|---|
| Motor | Ac Servo 750W 3,000rpm |
| Drive Mechanism | Timming Belt (8YU,GATES) P.C.D 50.95 |
| LM Guide | No.25 2Way 4Block |
| Repeatability | ±0.08mm |
-
2D 다운로드
-
3D 다운로드
본문
Detail view
Driving Specifications
| Reducer Rate | 8 | |
| Max Speed | 1000mm/s | |
| Payload(kg) | 수평 | 100 |
※ 위 하중은 Overhang에 따라 변경될 수 있음
Stroke by Max Speed & Weight
| Stroke | 100 | 200 | 300 | 400 | 500 | 1,000 | 1,500 | 2,000 | 2,500 | 3,000 |
| Max Speed | 1000mm/s | |||||||||
| Weight | 36.3 | 38.7 | 41 | 43.4 | 45.7 | 57.5 |
69.3 | 81.1 | 92.8 | 104.6 |
