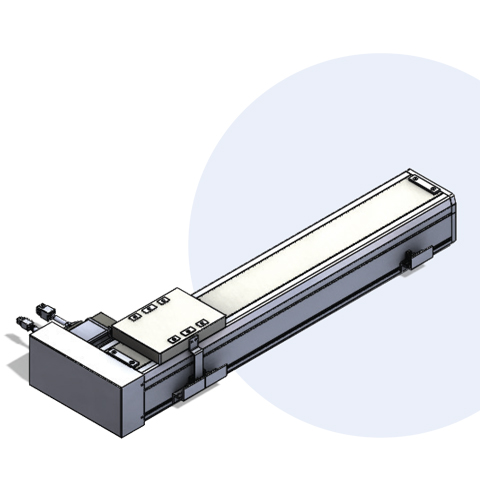

CLEAN JECS-S-095S
| Model | JECS-S-095S |
|---|---|
| Motor | Ac Servo 200W / 400W 3,000rpm |
| Drive Mechanism | Ball Screw Ø15-C7(grinding) |
| LM Guide | No.20 1Way 1Block |
| Repeatability | ±0.02mm |
-
2D 다운로드
-
3D 다운로드
본문
Detail view
Driving Specifications
| Ball Screw Lead | 5 | 10 | 20 | |
| Max Speed | 250mm/s | 500mm/s | 1000mm/s | |
| Payload(kg) | 수평 | 30 | 25 | 25 |
| 벽면 | 20 | 15 | 15 | |
| 수직 | 20 | 15 | - | |
※ 위 하중은 Overhang에 따라 변경될 수 있음
Stroke by Max Speed & Weight
| Stroke | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | |
| Max Speed | 10 | 500mm/s | 480mm/s | 380mm/s | 300mm/s | 240mm/s | |||||
| 20 | 1000mm/s | 960mm/s | 760mm/s | 600mm/s | 480mm/s | ||||||
| Weight | - | 6.3 | 7.2 | 8.1 | 9 | 10 | 10.9 | 11.8 | 12.7 | 13.6 | 14.5 |
