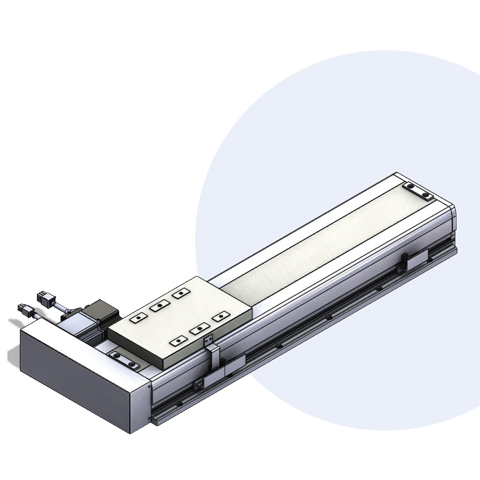

CLEAN JECS-S-120PL/R
| Model | JECS-S-120PL/R |
|---|---|
| Motor | Ac Servo 200W / 400W 3,000rpm |
| Drive Mechanism | Ball Screw Ø15-C7(grinding) |
| LM Guide | No.15 2Way 4Block |
| Repeatability | ±0.02mm |
-
2D 다운로드
-
3D 다운로드
본문
Detail view
Driving Specifications
| Ball Screw Lead | 5 | 10 | 20 | |
| Max Speed | 250mm/s | 500mm/s | 1000mm/s | |
| Payload(kg) | 수평 | 50 | 40 | 40 |
| 벽면 | 30 | 30 | 25 | |
| 수직 | 30 | 25 | - | |
※ 위 하중은 Overhang에 따라 변경될 수 있음
Stroke by Max Speed & Weight
| Stroke | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | |
| Max Speed | 10 | 500mm/s | 440mm/s | 350mm/s | 290mm/s | 250mm/s | 210mm/s | 180mm/s | |||||
| 20 | 1000mm/s | 880mm/s | 700mm/s | 580mm/s | 500mm/s | 420mm/s | 360mm/s | ||||||
| Weight | - | 9.6 | 10.8 | 11.9 | 13.1 | 14.3 | 15.5 | 16.6 | 17.8 | 19 | 20.2 | 21.3 | 22.5 |
