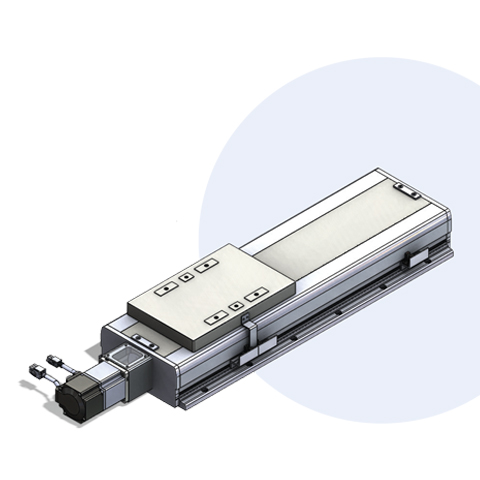

CLEAN JEC-S-165S
| Model | JECS-S-165S |
|---|---|
| Motor | Ac Servo 400W / 750W 3,000rpm |
| Drive Mechanism | Ball Screw Ø15/ Ø20-C7(grinding) |
| LM Guide | No.20 2Way 4Block |
| Repeatability | ±0.02mm |
-
2D 다운로드
-
3D 다운로드
본문
Detail view
Driving Specifications
| Ball Screw Lead | 5 | 10 | 20 | |
| Max Speed | 250mm/s | 500mm/s | 1000mm/s | |
| Payload(kg) | 수평 | 80 | 75 | 75 |
| 벽면 | 50 | 45 | 45 | |
| 수직 | 50 | 40 | - | |
※ 위 하중은 Overhang에 따라 변경될 수 있음
Stroke by Max Speed & Weight
| Stroke | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | |
| Max Speed | 10 | 500mm/s | 405mm/s | 320mm/s | 265mm/s | 250mm/s | 210mm/s | 178mm/s | 155mm/s | 135mm/s | |||||
| 20 | 1000mm/s | 810mm/s | 640mm/s | 600mm/s | 530mm/s | 420mm/s | 356mm/s | 420mm/s | 356mm/s | ||||||
| Weight | - | 14.2 | 15.8 | 17.4 | 19 | 20.7 | 22.3 |
23.9 | 25.5 | 27.1 | 28.7 | 30.4 | 32 | 33.6 | 35.2 |
