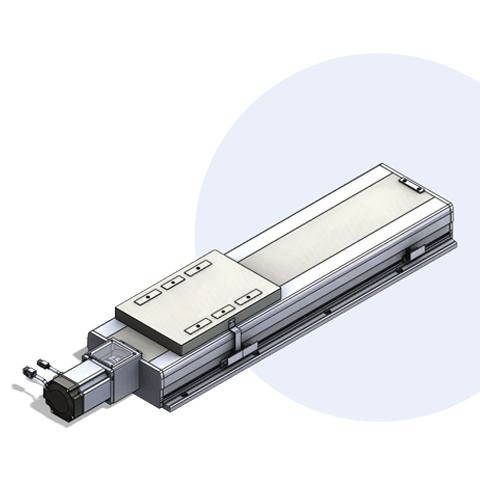

CLEAN JECS-S-200S
| Model | JECS-S-200S |
|---|---|
| Motor | Ac Servo 750W 3,000rpm |
| Drive Mechanism | Ball Screw Ø20/ Ø25-C7(grinding) |
| LM Guide | No.25 2Way 4Block |
| Repeatability | ±0.02mm |
-
2D 다운로드
-
3D 다운로드
본문
Detail view
Driving Specifications
| Ball Screw Lead | 5 | 10 | 20 | |
| Max Speed | 250mm/s | 500mm/s | 1000mm/s | |
| Payload(kg) | 수평 | - | 130 | 120 |
| 벽면 | - | 70 | 60 | |
| 수직 | 80 | 70 | - | |
※ 위 하중은 Overhang에 따라 변경될 수 있음
Stroke by Max Speed & Weight
| Stroke | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | |
| Max Speed | 10 | 500mm/s | 450mm/s | 370mm/s | 310mm/s | 260mm/s | 225mm/s | 195mm/s | 170mm/s | 150mm/s | 130mm/s | 120mm/s | |||||
| 20 | 1000mm/s | 900mm/s | 740mm/s | 700mm/s | 520mm/s | 450mm/s | 390mm/s | 340mm/s | 300mm/s | 260mm/s | 240mm/s | ||||||
| Weight | - | 23.5 | 26 | 28.6 | 31.1 | 33.7 | 36.2 | 38.7 | 41.3 | 43.8 | 46.3 | 48.9 | 51.4 | 54 | 56.5 | 59 | 61.6 |
