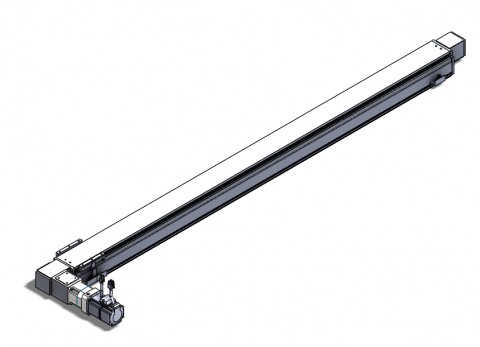

BELT JES-B-095S
| JES-B-095S | |
|---|---|
| Motor | Ac Servo 400W 3,000rpm |
| Drive Mechanism | Timming Belt (5GT,GATES) P.C.D 23.87 |
| LM Guide | No.20 1Way 1Block |
| Repeatability | ±0.08mm |
-
2D 다운로드
-
3D 다운로드
본문
Detail view
Driving Specifications
| Reducer Rate | 2 (풀리감속) | |
| Max Speed | 1,500mm/s | |
| Payload(kg) | 수평 | 10 |
※ 위 하중은 Overhang에 따라 변경될 수 있음
Stroke by Max Speed & Weight
| Stroke | 100 | 200 | 300 | 400 | 500 | 1,000 | 1,500 | 2,000 | 2,500 | 3,000 |
| Max Speed | 1500mm/s | |||||||||
| Weight | 8.9 | 9.9 | 10.9 | 11.8 | 12.8 | 17.7 | 22.6 | 27.5 | 32.4 | 37.3 |
